T-FOLD Pro

Advanced Double Feeder Two-Piece Folder Gluer 2400

T-FOLD

2400

T-Fold Pro 2400 is an upgraded version of T-Fold. In order to introduce more advanced packaging design, DGM collaborated with Italian cardboard equipment experts to develop the latest “T-Fold Pro” series of intelligent multi-functional folder gluer. This machine discards traditional box folding and gluing techniques and adopts a left-right dual splicing method, saving space and reducing costs, bringing significant optimization to the processing technology of heavy-duty corrugated cardboard boxes.

Corrugated cardboard boxes are mainly used for outer packaging and have always been the preferred choice for logistics and heavy goods. Combined with the advantages of corrugated cardboard boxes such as durability and environmental friendliness, and with the rapid innovation of packaging technology, the application of corrugated cardboard boxes is becoming more diversified. T-Fold Pro enhances the functionality of traditional folder gluer, reduces labor costs, creates unexpected value for cardboard boxes, and enhances competitiveness.
T-FOLD PRODOWNLOAD
X
  • OVERVIEW
  • COMPOSITION
  • SPECIFICATIONS
  • BOX TYPE
  • SCHEME

At a glance

  • FAST PROCESSING

    FAST PROCESSING

    300 m/min
  • WIDE RANGE

    WIDE RANGE

    Max. 2400 mm
  • MATERIALS

    MATERIALS

    Corrugated board
  • FLEXIBLE & EASY TO OPERATE

    FLEXIBLE & EASY TO OPERATE

  • CERTIFICATED

    CERTIFICATED

Product demo

T-FOLD 2400

img_13

Composition

  • 1 Double feeder section
  • 2 Side folding device
  • 3 Trombone section
  • 1

    Double feeder section

    - Upper and lower feeders with 4 belts, each 120 mm wide. - Feeding carriers with 12mm thickness, capable of lateral movement. - Fully adjustable lateral feed gates to accommodate the width of the blank. - 2 adjustable front feed knives. - Suction feeding function. - Independently driven by servo motor.
    Double feeder section Arrow
  • 2

    Side folding device

    - Pulleys designed at different angles to guide the box flap steadily to the gluing unit.
    Side folding device Arrow
  • 3

    Trombone section

    - 4 sets of upper and lower carriers. - Provides sufficient transfer time for reliable bonding. - Can be in-line with other folder gluers to achieve multi-function in a single pass. - Independent servo motor-driven system.
    Trombone section Arrow

Specifications

Processed Material

  • Cardboard max. 400gsm
  • Corrugated type A ,B, C, E, K, BC, EB, AB, 3 to 5 layers

Dimensions & Weight

  • Length 14.70 m
  • Width 3.90 m
  • Height 2.66 m
  • Weight 9.00 Ton

Capability

  • Speed max. 250 m/min
  • Inching speed 10 m/min
  • Cardboard thickness<8 mm
  • Blank width 650 to 2400 mm
  • 2-piece box open blank width max. 4800 mm
  • Hotmelt & cold glue

Installation

  • Power supply 40 kW
  • Compressed air 10 bar
  • Air compressor capacity  30 m³/h
  • Capacity 150 L

Boxes

  • 1 Over lapped
  • 2 Two piece side by side
  • 3 Wine box with partitions
  • 4 TwinBox or TwinPack Lock bottom box
  • 5 TwinBox or TwinPack American box
  • Over lapped

    Over lapped

    A: 500-2400 mm B: 350-1700 mm E: 35-50 mm

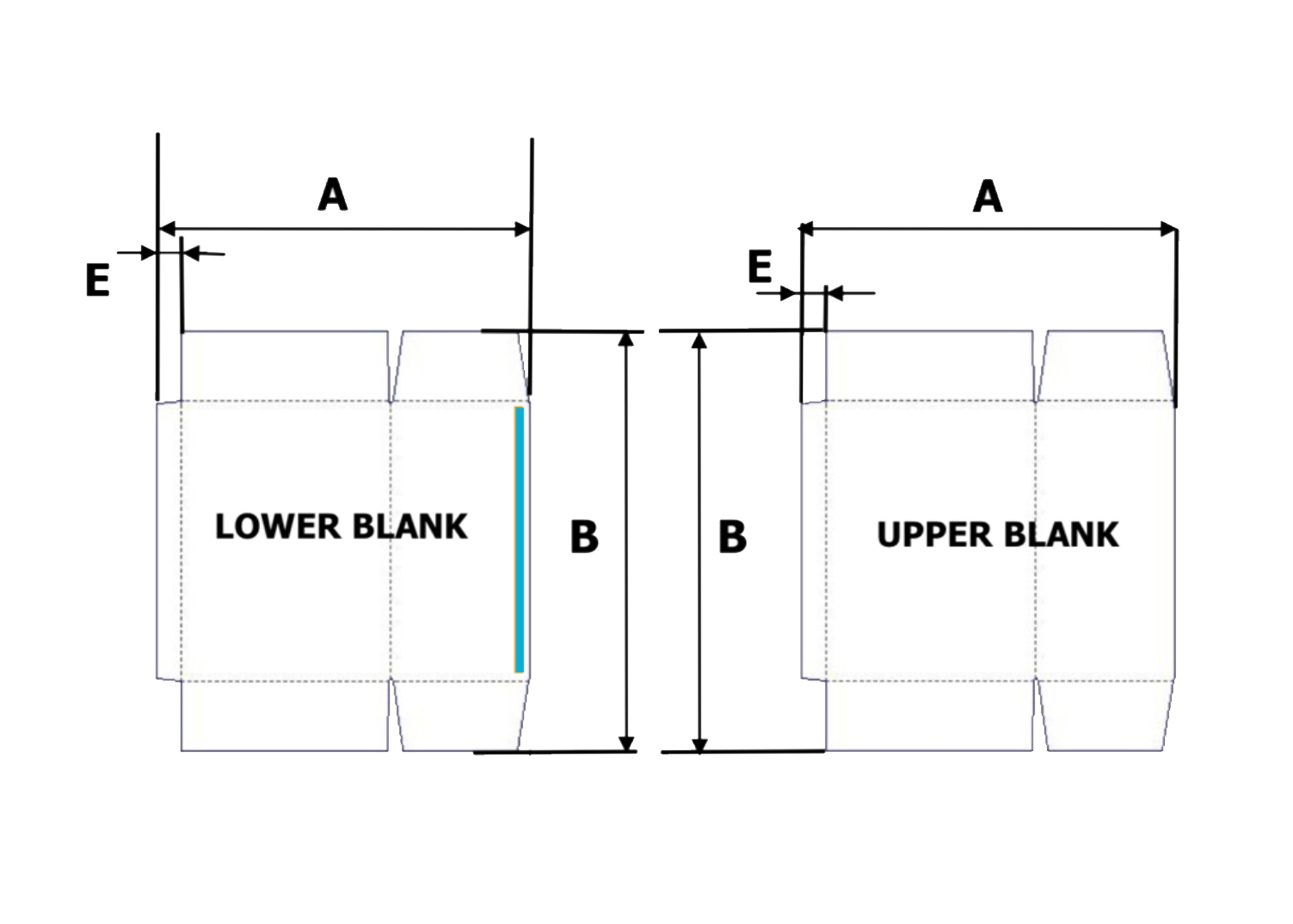

  • Two piece side by side

    Two piece side by side

    A: 500-1200 mm B: 350-1700 mm E: 15-50 mm
  • Wine box with partitions

    Wine box with partitions

    A: 500-2400 mm B: 350-1700 mm C&D: 40-1120 mm E: 15-40 mm
  • TwinBox or TwinPack Lock bottom box

    TwinBox or TwinPack Lock bottom box

    A: 500-2400 mm B: 350-1700 mm C: 130-1050 mm D: 40-1120 mm E: 15-40 mm b: 120 mm
  • TwinBox or TwinPack American box

    TwinBox or TwinPack American box

    A: 500-2400 mm B: 350-1700 mm C&D: 40-1120 mm E: 15-40 mm b: 120 mm

Scheme

TFold Pro 2400

Our clients opinion

“Quality improvement is more than expected”

Mr. Guang

JCH Industries / Foshan Guangdong
