Efficient Hot Foil Stamper 1050 FLC

TECHNOFOIL

1050 FLC

TECHNOFOIL 1050 FLC Automatic Platen Hot Foil Stamper & Die Cutting Machine is a state-of-the-art solution for large format die-cutting and stamping, featuring longitudinal and transversal foil pull systems, as well as Holo-gram capabilities. Renowned for its high precision, rapid speed, user-friendly operation, quick changeovers, durable construction, and consistent performance, this machine is widely regarded as one of the top choices in the industry. Whether you require efficient high-volume production or precise processing with holographic effects, the TECHNOFOIL 1050 FLC excels in delivering exceptional results. Elevate your manufacturing capabilities with this innovative machine that offers superior performance and reliability.

DOWNLOAD

OVERVIEW
COMPOSITION
SPECIFICATIONS

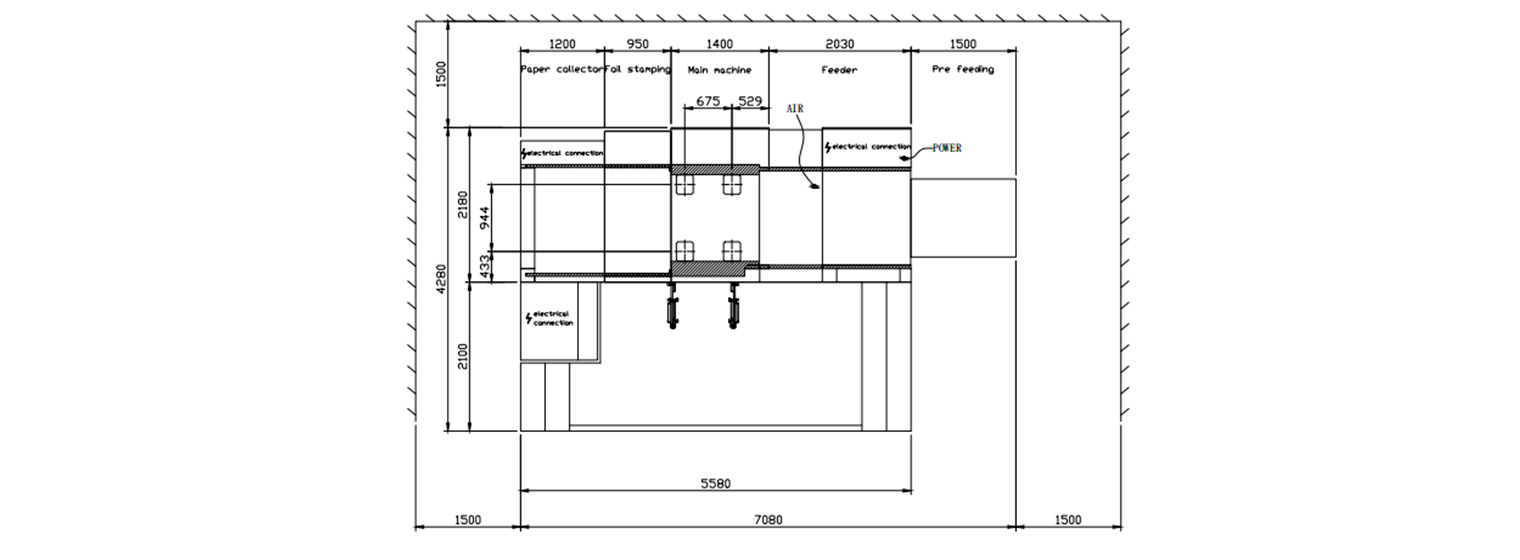

SCHEME

At a glance

FAST PROCESSING
7500 s/h die cutting, 6500 s/h foil stamping
WIDE RANGE
400 mm to 1050 mm
MATERIALS
Paper, Cardboard, Corrugated board, Plastic
FLEXIBLE & EASY TO OPERATE
CERTIFICATED

Product demo

TECHNOFOIL 1050 FLC

Composition

1 Feeder section
2 Register table
3 Press section
4 Foil stamping system
5 Hologram system
6 Delivery section
7 Longitudinal Shaft
8 Transverse shaft

1
Feeder section

- Automatic feeder with non-stop system, with pallet and cart direct load. - 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from paper to corrugated board, guaranteeing the accuracy, reliability, and smoothness of paper feeding. - Double sheet detector.
2
Register table

- Quick changeovers, easy to operate. - 2 register side guides working with pulling and pushing system. - 4 register front lays, independently adjustable.
3
Press section

- Closed chase with central positioning system device for fast positioning of the die. - Cutting plate 5 mm thickness. - Pressure control system, can be easily adjusted through touch screen. It has a security system to avoid any damage in the press. - Manual and automatic lubrication system. - 7 light weight gripper bars. - Turn-over bracket for cutting chase and honeycomb chase. - Pneumatic lock and release system for cutting chase and honeycomb plate.
4
Foil stamping system

- Heating system in 12 temperature zones with individual temperature control. - Foil break detector. - Films fasten device. - Foil unwind device. - Honeycomb chase.
5
Hologram system

- High precision servo motor control system. - Holographic foil sensor tracker. - Foil tensioning system. - Optical fiber precise positioning system, together with hologram foil unwind and foil fasten devices, make sure accurate registration and stamping.
6
Delivery section

- Non-stop device with automatic conveyor at delivery.
7
Longitudinal Shaft

- 4 foil rolls in a high precision longitudinal foil feeding system. - Air blast foil separation system. - Foil tensioning system.
8
Transverse shaft

- 2 foil rolls in a high precision transversal foil feeding system.
