Universal Folder Gluer for Corrugated and Cardboard 1100

TECHNOFOLD

1100

TECHNOFOLD 1100 – AC
without pre-folding section.
Suitable for straight-line, crash-lock bottom & double wall boxes.

TECHNOFOLD 1100 – PC
Suitable for straight-line, crash-lock bottom & double wall boxes.

TECHNOFOLD 1100 – SL
Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes.

TECHNOFOLD-1100 especially suitable for small and medium-sized packaging companies, commercial printers and finishers. It´s able to process small and medium sized boxes.

Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.

The new Technofold series inherits the best features of the previous Technofold ES series, making a qualitative leap by developing new solutions. Versatility, fast exchange of accessories, easy setup together with faster production speed, guarantee a high productivity and quality of work. Technofold, the perfect folder-gluer machine for the most demanding packaging market.

DOWNLOAD

OVERVIEW
COMPOSITION
SPECIFICATIONS
BOX TYPE
SCHEME
PERIPHERALS

At a glance

FAST PROCESSING
Max. 300 m/min
WIDE RANGE
Max. 1100 mm
MATERIALS
Cardboard, Corrugated board
FLEXIBLE & EASY TO OPERATE
CERTIFICATED

Product demo

TECHNOFOLD 1100

Composition

1 Feeder section
2 Side register section
3 Pre-folding section
4 Crash lock bottom section
5 Lower gluing section
6 Folding and Closing section
7 Trombone section
8 Conveyor section
9 4&6 corner device

1
Feeder section

- Driven independently by servo motor. - Adjustable electronic pile vibrator. - Lateral feed gates fully adjustable to the width of the blank. - 8 feeder belts. - Three adjustable front feed knives.
2
Side register section

- Independent section with an unparalleled lower carrier that guides the box to a parallel handrail, allowing for perfect blank alignment.
3
Pre-folding section

- Left-hand glue flap pre-folder up to 180º. - Third crease line pre-folder up to 135º. - 1st and 3rd crease openers.
4

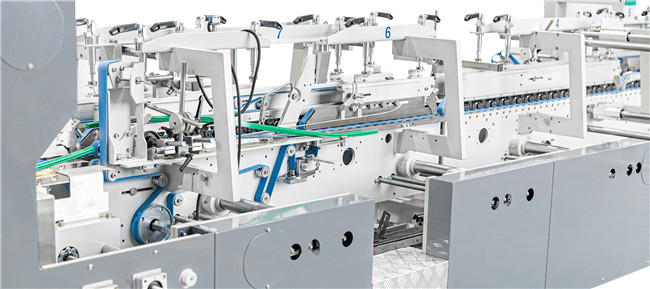

Crash lock bottom section

- 3 sets of upper and lower carriers. - Complete set of folding hooks and helixes to fold the front flaps of the blank smoothly and accurately. - Set of accessories for "B" lock bottom.
5
Lower gluing section

- Left lower gluing tank. - Easy to remove and clean. - Optional electronic upper gluing system by guns, upon request.
6
Folding and Closing section

- Smooth and accurate folding of 2nd and 4th creases. - Outer folding belts L&R side adjustable up to 180° with variable speed. - Three upper and lower carriers. - 25 mm lower and 30 mm outer belts on left and right carriers. - Width-wise adjustable heavy-duty compression rollers.
7
Trombone section

- Upper and lower drive mechanism for length adjustment. - Equipped with automatic belt tension-adjusting system. - Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well-aligned flow. - Electronic counter and "Kicker" for marking packets.
8
Conveyor section

- Independent and motorized press section. - Manual and automatic mode (follow-up). - Upper section moves back and forward, allowing for different box length. - 5.59 meters total length with 3.1 meters effective pressure length. - Pneumatic pressure adjustment.
9
4&6 corner device

Back folding device: - Suitable to fold rear 4 & 6-corner flaps or panels and many other designs. - Motorized and untimed electronic back folding system with intelligent servo motor technology. - Easy to set up through the main touch screen.
