TECHNOFOIL 1050-FSC

1 shaft longitudinal direction with 3 foil rolls + 1 shaft transverse direction

TECHNOFOIL 1050-FSC Automatic Platen Hot Foil Stamper & Die Cutting Machine. It can run large format die-cutting with stripping as well as stamping with 3 longitudinal and 2 transverse foil pull system. High precision, high speed, easy to operate, quick make-readies, durability and stable performance. Features that make the machine one of the best options when choosing.

Composition
Feeder
  • Automatic feeder with non-stop system, with pallet and cart direct load.

  • 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from pa-per to corrugated board, guarantee the accuracy, reliability and smoothness of paper feeding.

  • Double sheet detector.

Register table
  • Quick changeovers, easy to operate.

  • 2 register side guides working with pulling and pushing system.

  • 4 register front lays, independently adjustable.

Press Section
  • Closed chase with central positioning system device for fast positioning of the die.

  • Cutting plate 5 mm thickness.

  • Pressure control system, can be easily adjusted through touch screen. It has a securi-ty system to avoid any damage in the press.

  • Manual and automatic lubrication system.

  • 7 light weight gripper bars.

  • Turn-over bracket for cutting chase and honeycomb chase.

  • Pneumatic lock and release system for cutting chase and honeycomb plate.

Foil stamping system
  • Heating system in 12 temperature zones with individual temperature control.

  • Foil break detector.

  • Films fasten device.

  • Foil unwind device.

  • Honeycomb chase.

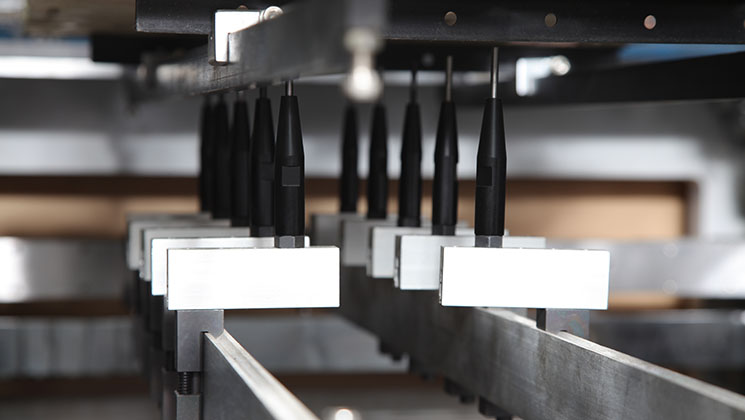

Stripping section
  • Optimized cam movement curve that guarantees stripping stability and accuracy.

  • Quick-locking and central positioning system to assure the waste is cleared with accuracy.

Delivery section
  • Non-stop device with automatic conveyor at delivery.

Motorized removable longitudinal foil system
  • 3 longitudinal shaft foil rollers.

  • Easy to remove and set up.

  • Can be used as a foil stamper machine with 3 longitudinal plus 2 transversal shafts or a regular die-cutter with stripping.

  • Air blast foil separation system.

  • Foil tensioning system.

Transverse shaft
  • 2 foil rolls in a high precision transversal foil feeding system.


Processed material

Paper

Carton Board

Corrugated Board

Specifications
  • Processed Materials

  • Paper from 80 g/m²

  • Carton board max. 2000 g/m²

  • Corrugated board max. 4 mm

  • Capability

  • Sheet size min. 350 x 400 mm

  • Sheet size max. 740 x 1050 mm

  • Speed max. 7500 s/h

  • Stamping speed max. 6000 s/h

  • Cutting force 300 Ton

  • Converting

  • Stamping & embossing size max. 720 x 1020 mm (Longitudinal)

  • Stamping & embossing size max. 580 x 1020 mm (Transversal)

  • Die cutting size max. 730 x 1040 mm

  • Heating System

  • Heating zones 12 units

  • Temperature max 200 ºC


  • Foil Equipment

  • Foil length 120 to 1200 m

  • Web width 50 to 1020 mm (Longitudinal)

  • Web width 50 to 630 mm (Transversal)

  • Web advance shafts 3 (Longitudinal)

  • Web advance shafts 2 (Transversal)

  • Pile Height

  • Feeder max. 1650 mm

  • Feeder with non-stop 1270 mm

  • Delivery max. 1300 mm

  • Dimensions & Weight

  • Length x Width x Height 7.08 x 5.52 x 3.26 m

  • Weight 21 Ton

  • Installation

  • Power supply 60 kW

  • Compressed air 6 bar

  • Air compressor capacity 30 m³/h

  • Air tank capacity 155 L

  • Air compressor power 3.5 kW


Scheme
