SMARTFLUTE X 1650

Fully automatic high speed laminating machine

One click smart start, precise positioning by servo motor system.

Corrugated with cardboard, cardboard with cardboard, cardboard with greyboard, all types of laminating jobs can be easily handled on our laminators.


Composition
Sheet feeder section
  • Streaming feeding system, max. pile height 2.0m.

  • Shaftless servo paper output, easier to adjust and more stable than the traditional linkage type, longer service life, less consumption.

  • Upper limit micro-switch and elevator motor brake, dual secure protection system.

  • The non-contact switch is used to control the frequent starting and braking of the elevator to avoid the electrical failure caused by the use of the contact switch.

Alignment transfer section
  • 2 sets of transfer belts together with press rollers and lever, can choose pushing or pulling alignment system.

  • Servo motor control system for substrate feeder together with top sheet detector.

  • Ensure a perfect synchronization between top and lower sheets.

  • Micro-adjusted mechanism is allowed while machine in operation, provides an accurate laminationg after gluing unit.

Substrate feeder section
  • Vacuum servo motor feeding system with alignment side guide, guarantee perfect feeding.

  • Mechanical alignment system to ensure all substrates are guiding straightly.

  • Dust remover device to avoid substrate board jam.

  • Servo motor intermittent feeding system, more safe and reliable.

  • When top sheet is unloaded, substrate feeding will stop automatically and show alarm warning.

Laminating unit
  • Larger size gluing roller to avoid glue spilt out.

  • Automatic adjust glue quantity and roller pressure by input thickness of the sheet.

  • Servo motor transmission front and side lays, ensures  ±1 mm laminating accuracy.

Conveyor
  • Conveyor system with uniform and balanced pressure to ensure optimum quantity in any type of work to be processed.

  • Movable upper conveyor mechanism. Independent motorized control.

Processed material

Paper board

Carton Board

Corrugated board

Specifications
  • Processed material

  • Carton board min 300 g/m²

  • Corrugated board types   E, F, B, C, A to 5 layers

  • Capability

  • Paper size from  420x500 to 1650x1300 mm

  • Machine speed    160 m/min


  • Dimensions & Weight

  • Length  16 m

  • Width  2.7 m

  • Height  3.25 m

  • Weight  12 Ton

  • Installation

  • Power supply  35 kW

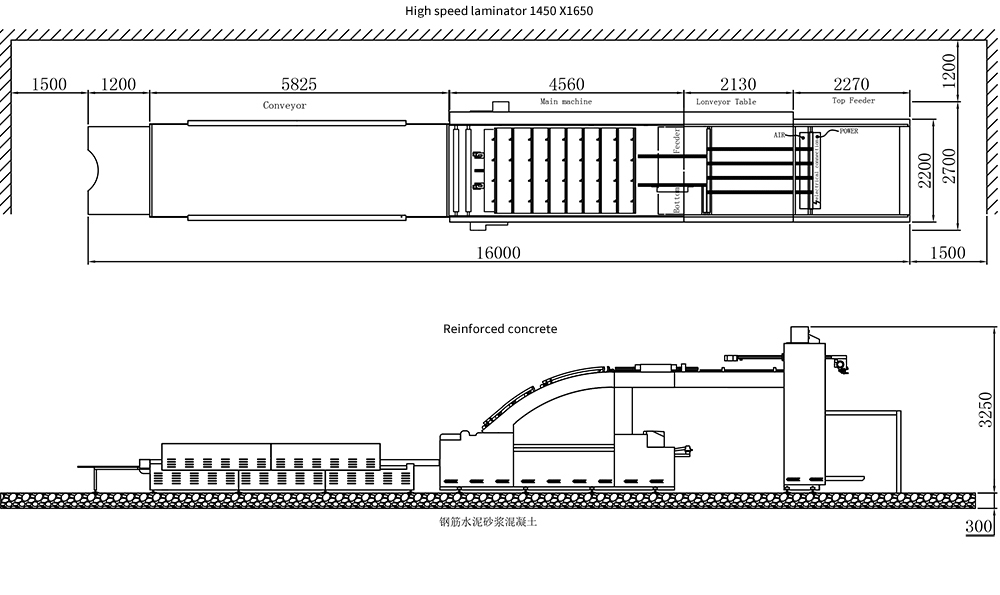

Scheme
